⛽ Fuel your drive with precision and power — don’t settle for less!

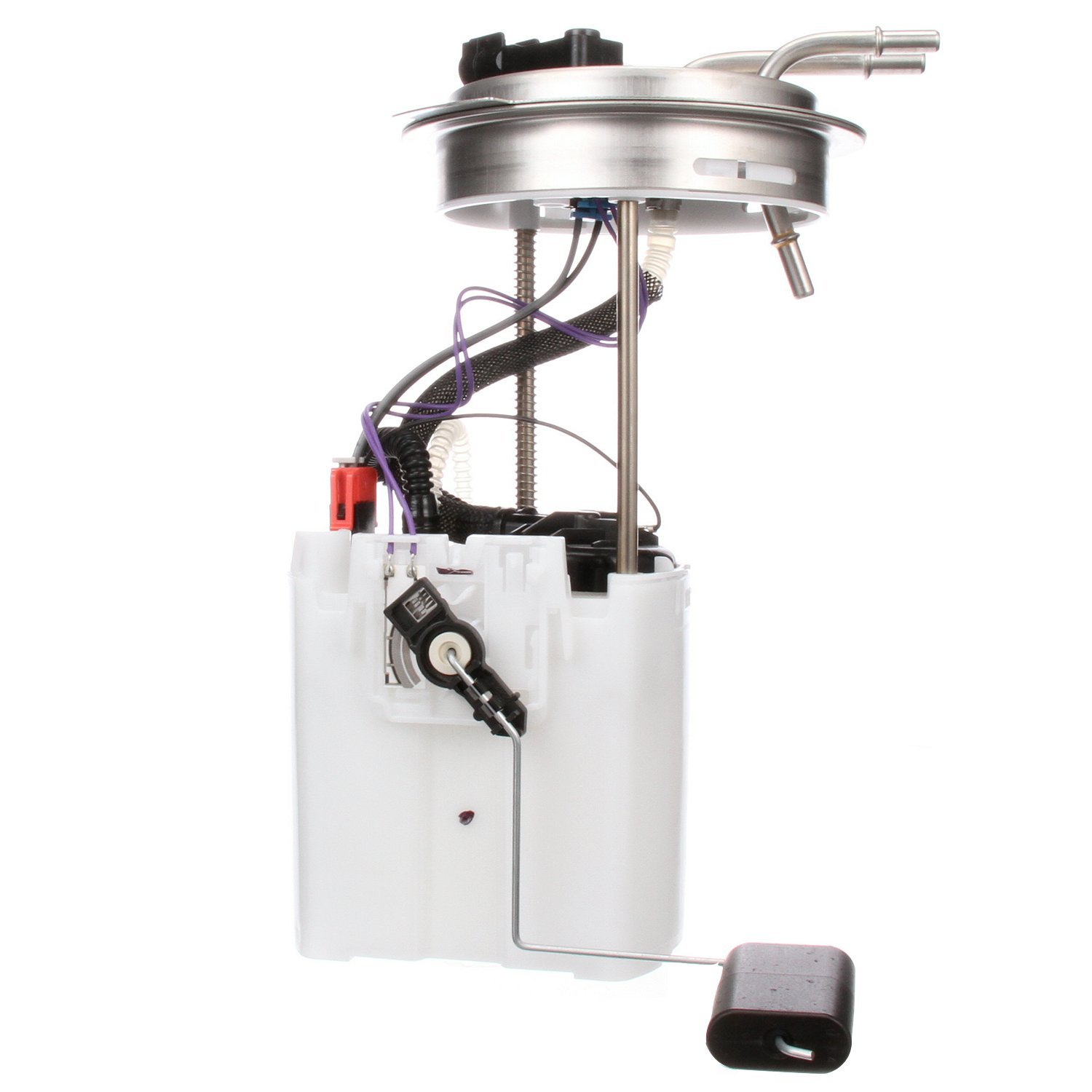

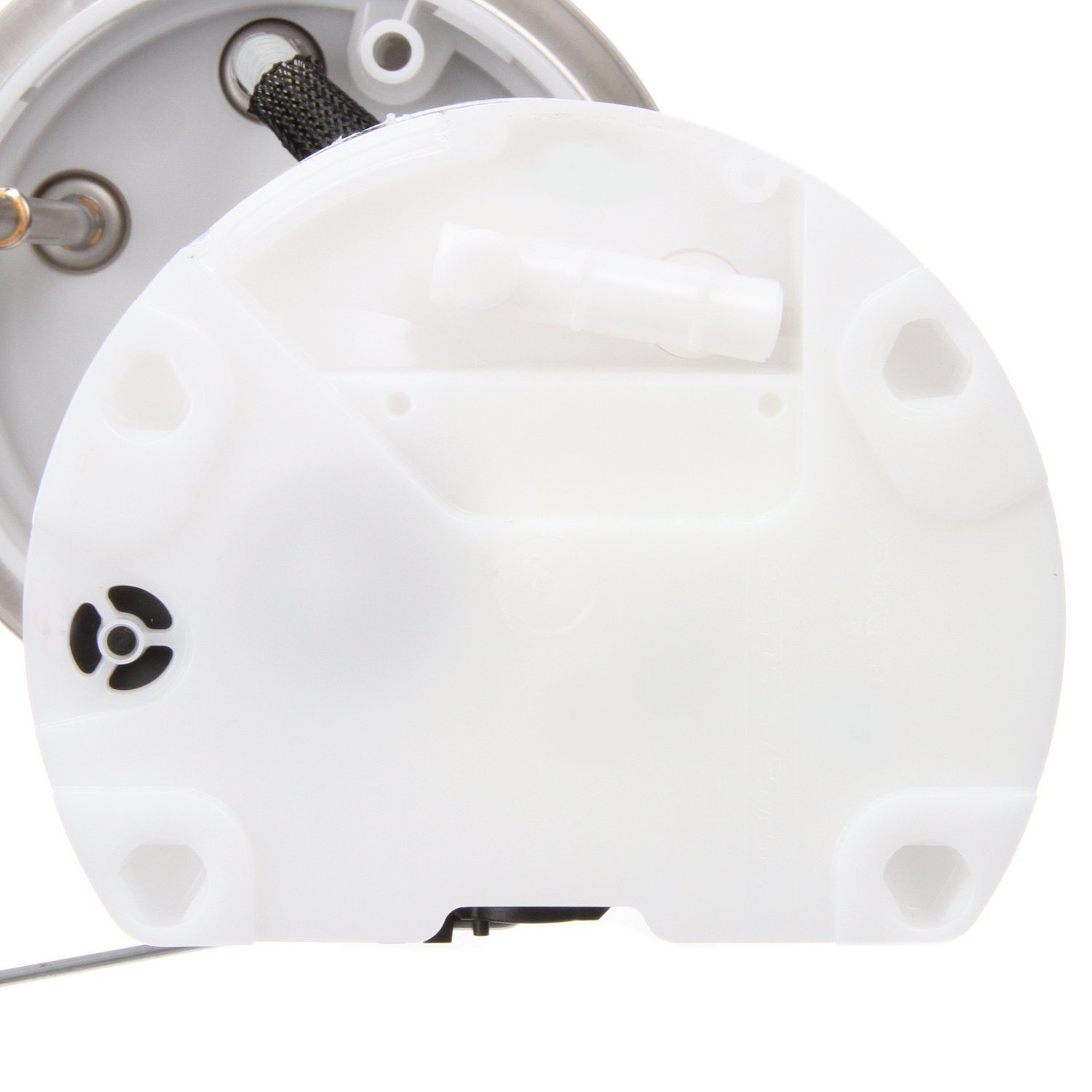

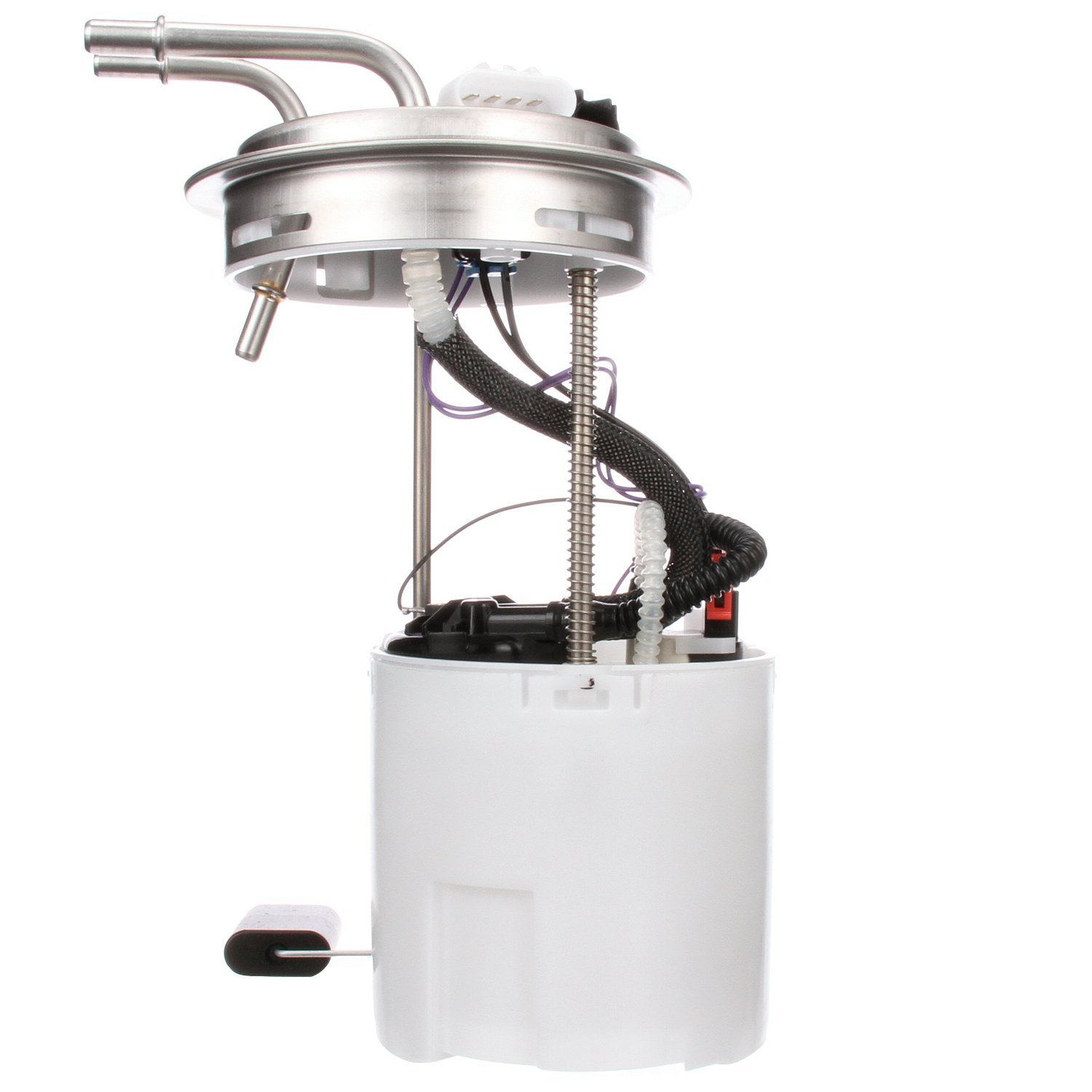

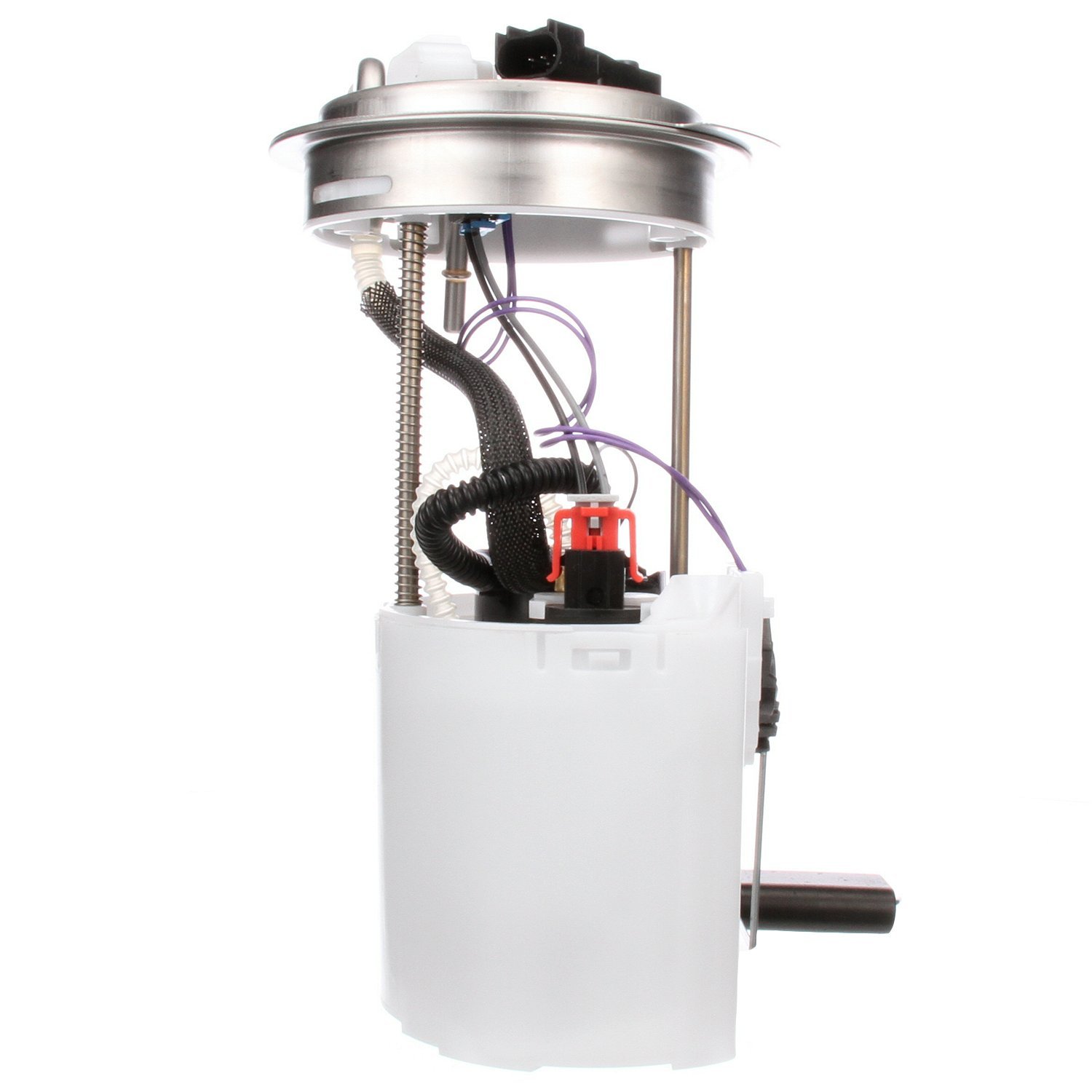

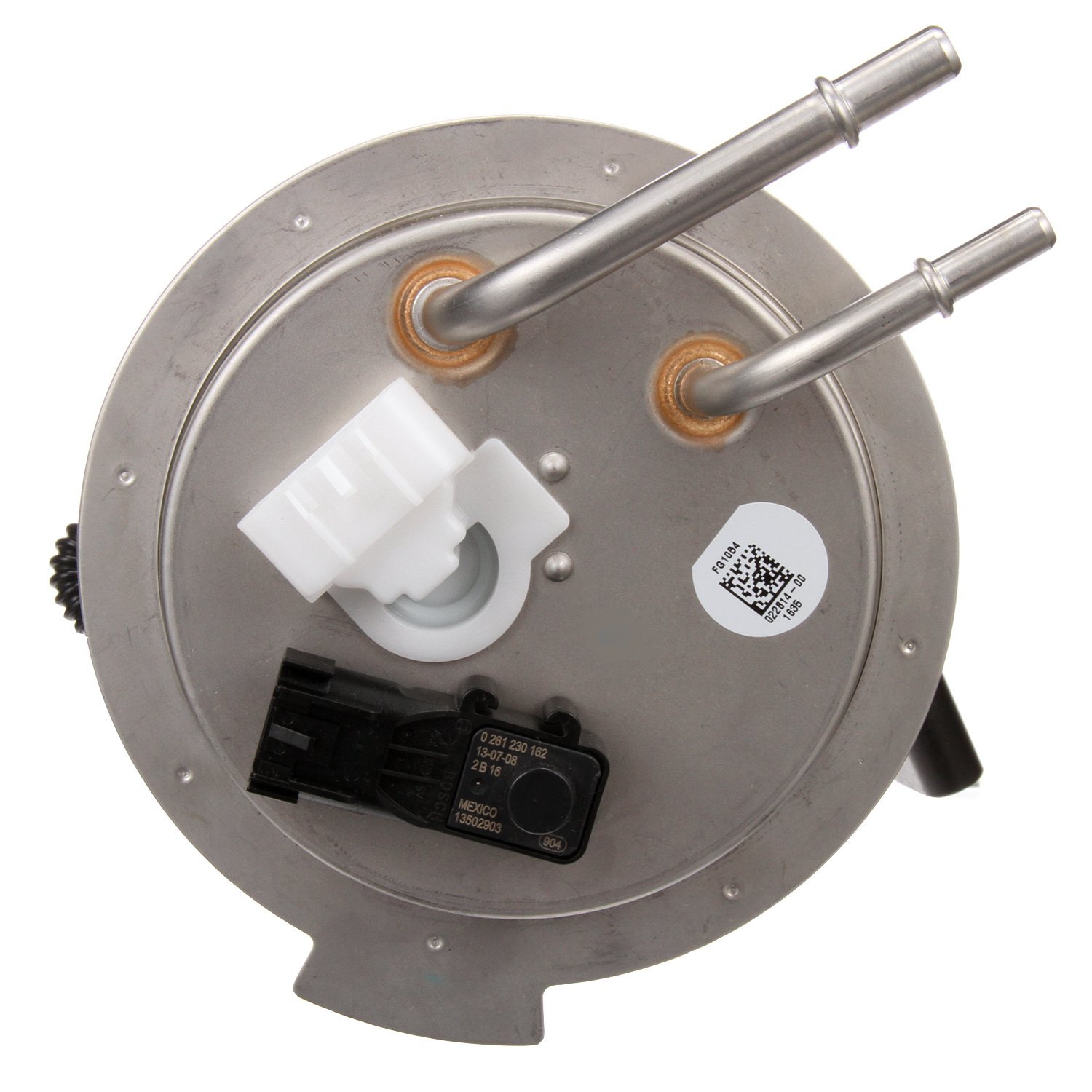

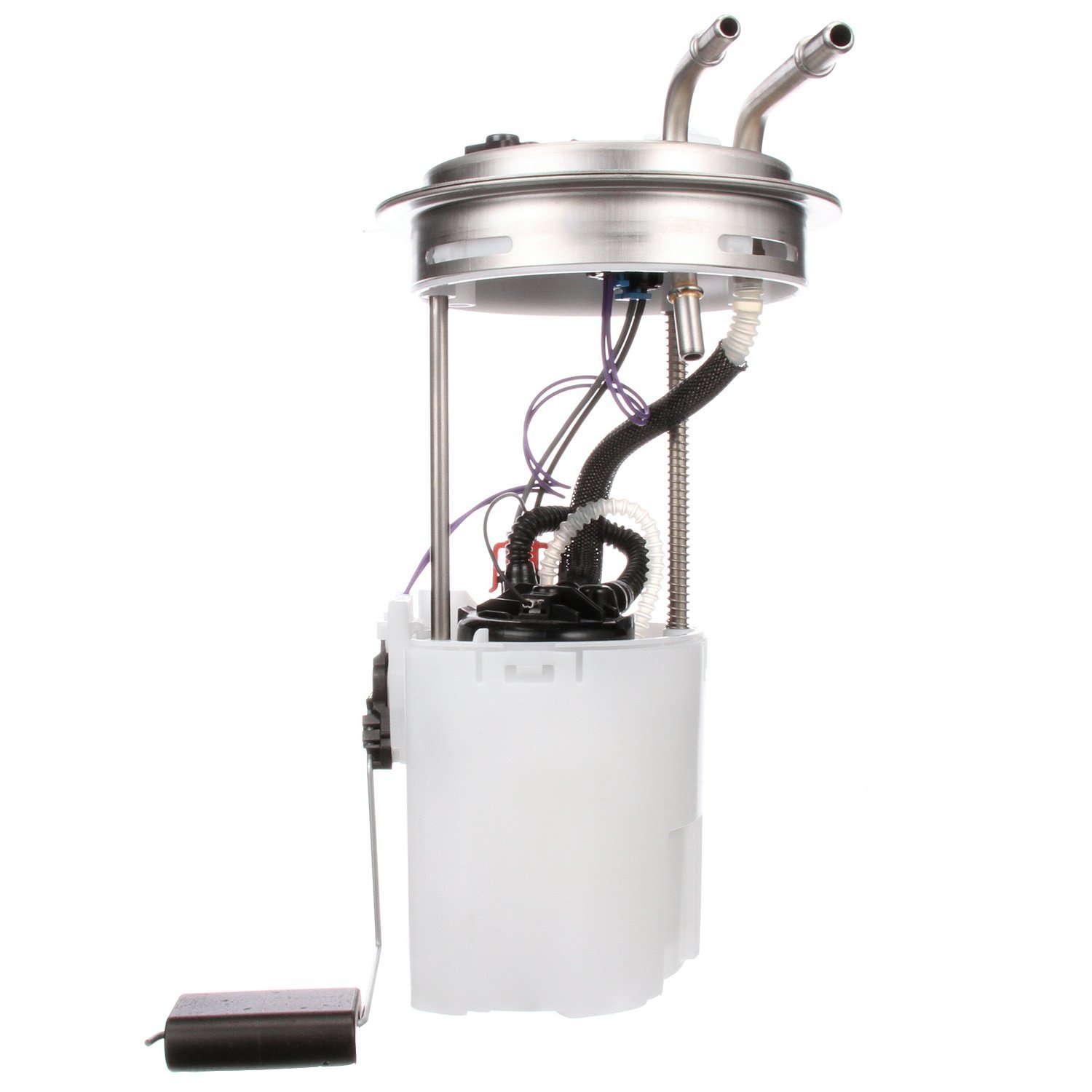

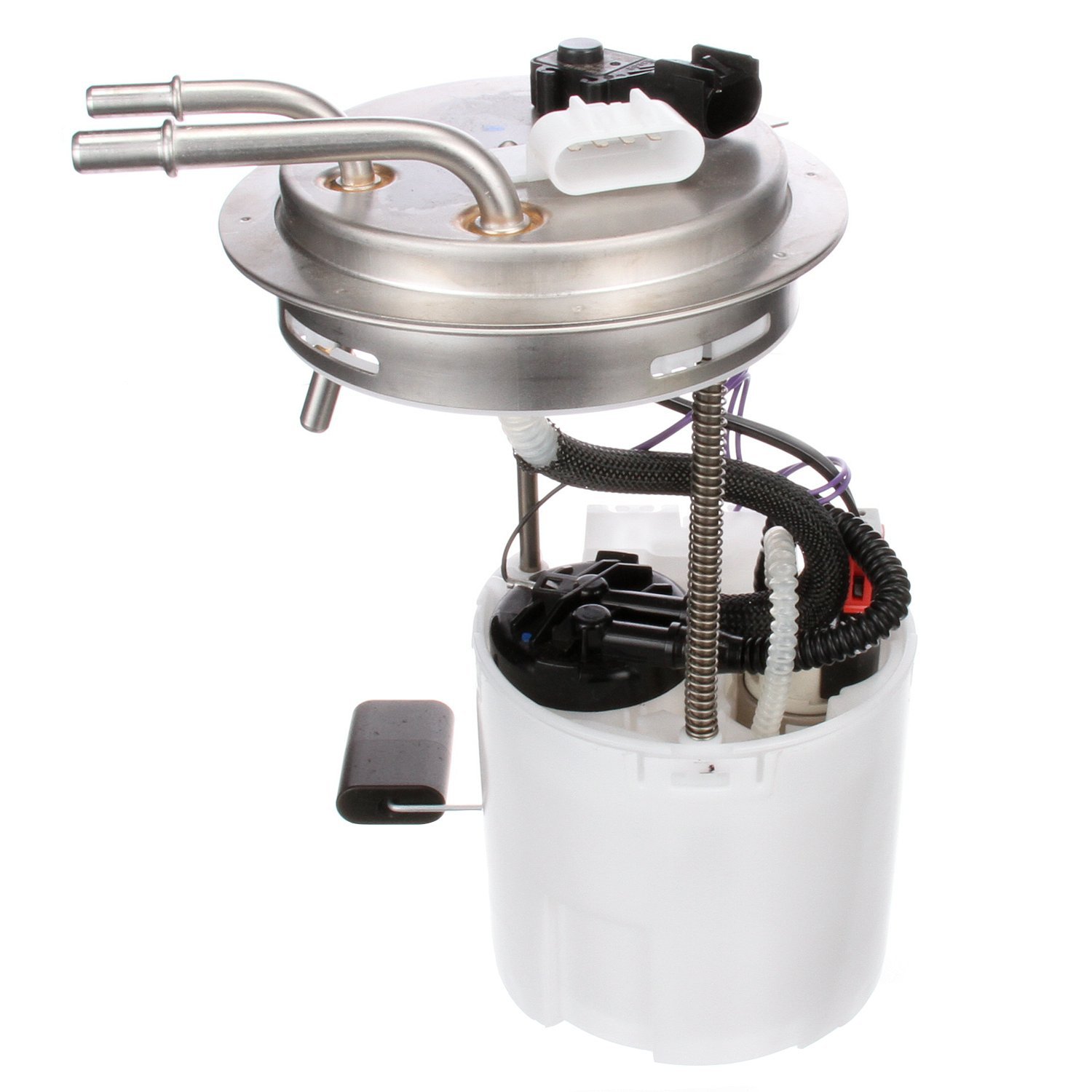

The Delphi FG1054 Fuel Module is a vehicle-specific, OE-standard fuel pump module engineered with durable stainless steel, aluminum, and alloy steel. It features a low amperage design to reduce electrical load, precise float calibration for accurate fuel gauge readings, and is rigorously tested to ensure reliable performance and fit.
| Brand | Delphi |
| Fit Type | Vehicle Specific Fit |
| Item dimensions L x W x H | 16.6 x 11.6 x 8.2 inches |
| Material | Stainless Steel, Aluminum, Alloy Steel |
| Item Weight | 2.3 Pounds |
| Specification Met | OE |
| Auto Part Position | Front |
| Outlet Connection Type | Barb |
| Body Material | Stainless Steel, Alloy Steel, Aluminum |
| Inlet Connection Type | Threaded |
| Connector Type | Barbed Connector |
| Gas Type | Ethanol |
| Mounting Type | Tank Mount |
| Operation Mode | Automatic |
| Product Grade | New |
| Global Trade Identification Number | 00689604215869 |
| Automotive Fit Type | Vehicle Specific Fit |
| OEM Part Number | E3768M, FP22052S, M100062, M100095, M10177, M10222, MU1711, MU2139, SK1356, A30011, 19206650, 19179868, 19179869, 19179870, 19257104, 19259393, 19299717, 19299718, DFG1054, SP6107M, P76297M, M2496229, 69451 |
| Manufacturer | Delphi |
| UPC | 689604215869 |
| Model | FG1054 |
| Item Weight | 2.3 pounds |
| Product Dimensions | 16.6 x 11.6 x 8.2 inches |
| Country of Origin | Mexico |
| Item model number | FG1054 |
| Exterior | Machined |
| Manufacturer Part Number | FG1054 |
J**M
Fits and works well in 2010 Escalade
Fits and works well in 2010 Escalade. Would buy again. No issues so far. Installed same as oem.
C**E
WILL NOT SHOW CORRECT FUEL LEVEL pump works,gas gauge not correct
installed in a 2009 chevy tahoe with 3/4 tank of fuel and the new pump only shows just over 1/4 tank - drained 15 gallons from the tank before installing the new pump and added 5 gallons and the fuel level only showed under 1/8 tank - added 10 more gallons and only went up to 1/4 - pump is working -now the gas gauge is not reading - not happy that now im having to take the tank out for the 2ed time over a defective level sensor - will update review when i get a replacement? btw i work at a chevy dealership as a tech for 24 years and this is the first time iv seen a level sensor read this far off being new part,and this is not a easy fuel tank to remove without a lift - update - replaced pump with another replacement and is still not working correctly - different style level sensor from the factory and the float is smaller than stock - returning both pumps and going back to the correct GM pump and level sensor
B**L
Fit my 2008 GMC Yukon 5.3L Flex Fuel perfectly
I alway look up application on the manufacturer's website before ordering from any online company. According to Amazon this does not fit my application but according to Delphi it does fit. I ordered it along with a new GM TR26 lock ring. The module came with a new o ring as the illustration shows, it fit perfectly, my Yukon is no longer pumping fuel out the top, we're back on the road. Thanks Delphi, thanks Amazon Prime.
T**S
Good product
Great direct replacement for my 2008 GMC yukon
V**K
Durrable
These Delphi pumps are proven to outlast the factory unit. Although, the GM pump provides a more stable and smooth fuel pressure due to cyclic pump module.
B**I
2010 Tahoe, buy new lock ring and oring as well!
Worked perfectly, but don't forget to buy the tank oring seal and new lock ring. It was supposed to have the oring but it was missing in my box. The lock ring tool (spanner socket) is vital for this job. Don't try with the old hammer and screwdriver or chisel. Use the tool on an impact wrench. Easily comes off. Do the same when installing.
S**.
Part failed!
Fuel psi regulator failed less than a year old. I paid a shop to install it now I have to have the same job done again.
H**R
Perfect fit
While Amazon said this did not fit my Tahoe,a little cross referencing proved otherwise…Perfect fit,good packaging..And yes,I’m a 40+ yr GM tech
